RA-DC8020
12/24V 27cfm 39Pa 38Db
Details

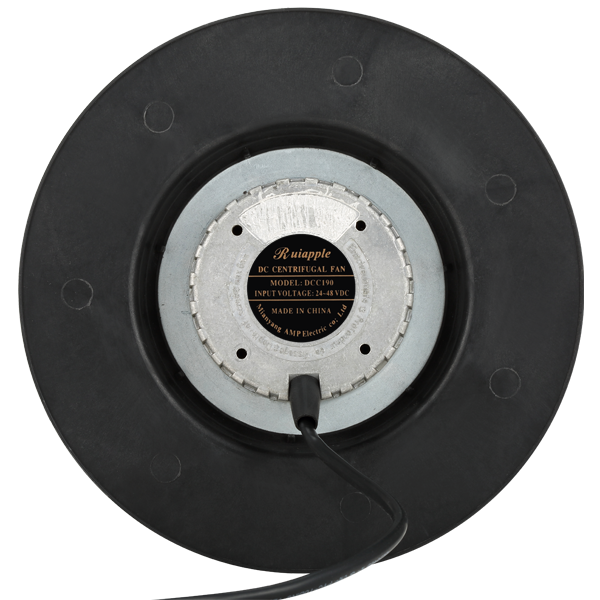

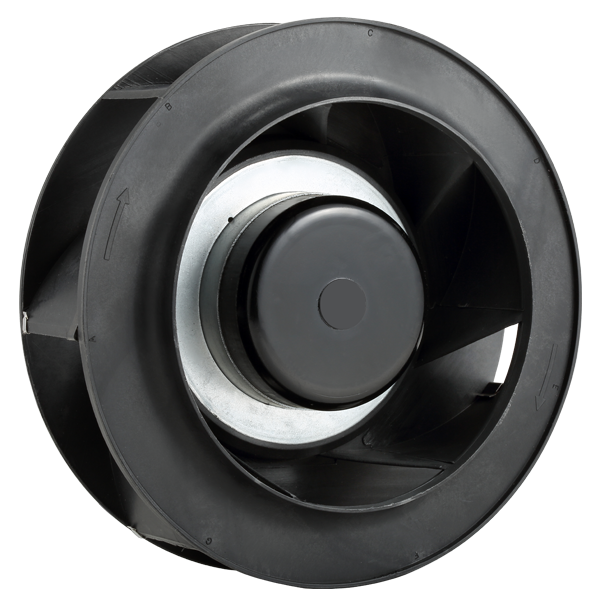

Model No. | RA-DCC190 |
Product Types | Centrifugal Fan |
Product Types | Brushless DC Motor |

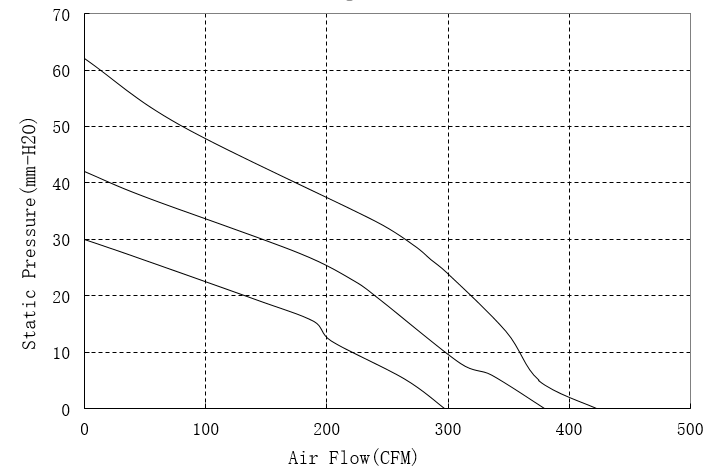

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
24L | 24 | 1.23 | 29.52 | 2300 | 294 | 504.60 | 297 | 65 |
24M | 24 | 1.90 | 45.60 | 2800 | 412 | 643.92 | 379 | 69 |
24H | 24 | 3.30 | 79.20 | 3300 | 608 | 716.98 | 422 | 73 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
