Product description:
DC motor powered axial fan series covers a diameter range of models from 20mm to 200mm. with maximum air volume up to 700 m3/h and maximum static pressure up to 500 Pa. Input power sources for DC series are 12VDC 24VDC 48VDC; DC motors make excellent performance of this product Low noise Low vibration Energy saving Enviromental performance quietness. The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL TUV and VDE. Every model undergoes rigorous testing to achieve minimum noise under high airflow and air pressure conditions. All models are meet strict reliability requirements.

Data Sheet
Detailed Parameters
Model No. & Category

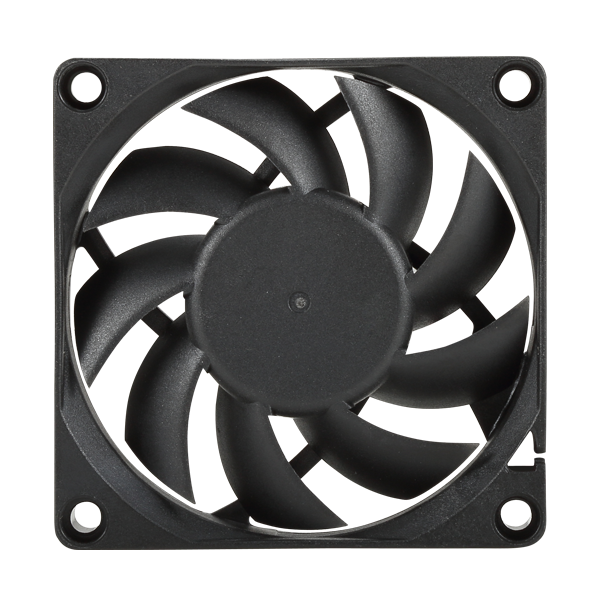

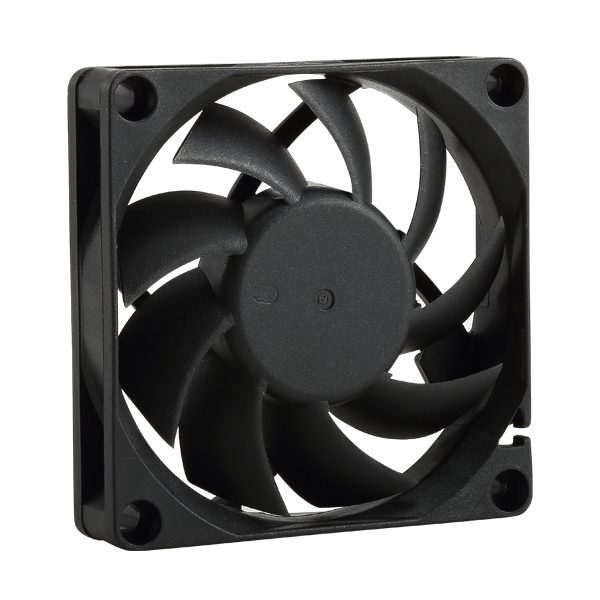

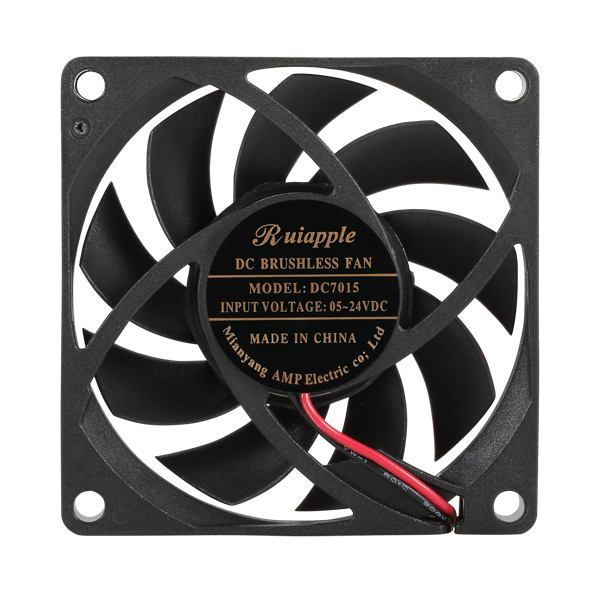

Model No.RA-DC7015
Product TypesAxial Fan
Product TypesBrushless DC Motor

Basic Parameters

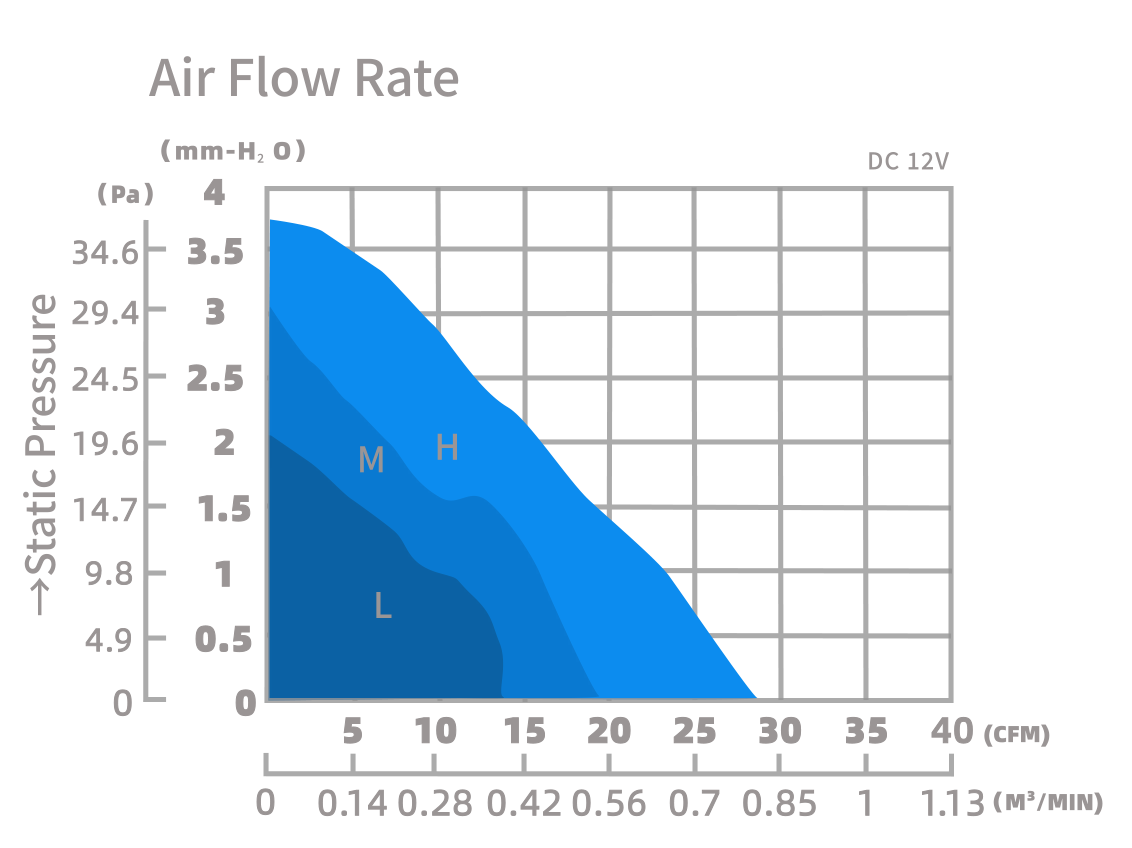

Model:Voltage  (V)Current  (A)Power(W)Speed(RPM)Pressure (Pa)Air Flow(m³/h)Air Flow(CFM)Noise  (dB)

Product Information
Bearing TypeBall OR Sleeve
Impeller and FramPBT PLASTIC
ApprovalsUL CE CCC
Speed ControlPWM VSP Temperature Control Fix Speed with Pressure Intermittent
ProtectedLock Auto-start Overload
Out SignalFG RD LD
Insulation ClassB
Insulation Resistance10MΩ/500V DC
Dielectric Strength2Min/500V AC/5mA
Insulation ClassF
Relative Humidity20%-85%
Working Temperature-10℃/+60℃
Max Life80000 hours
