RA-DC5020
12/24V 15.1cfm 52Pa 38Db
Details

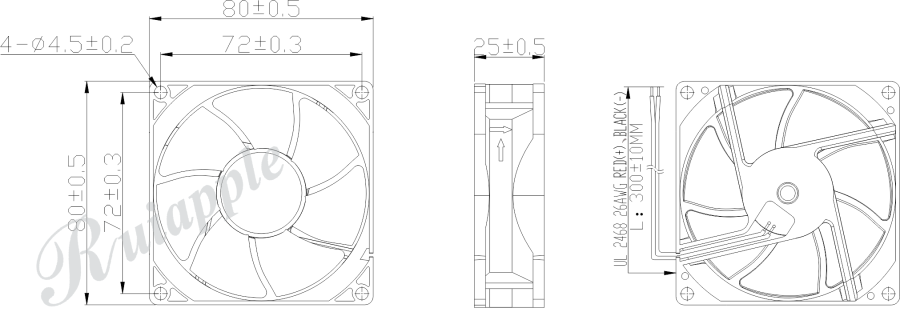

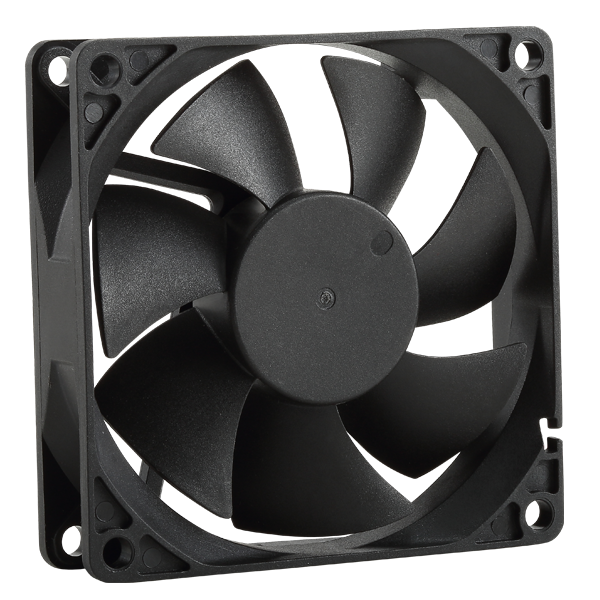

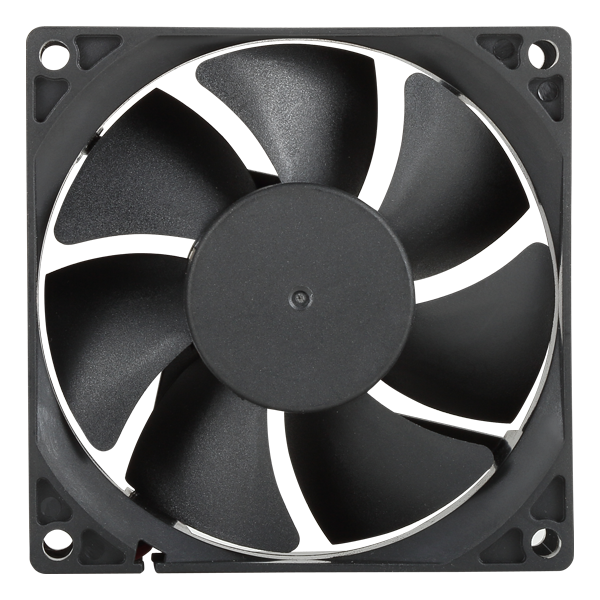

Model No. | RA-DC8025 |
Product Types | Axial Fan |
Product Types | Brushless DC Motor |

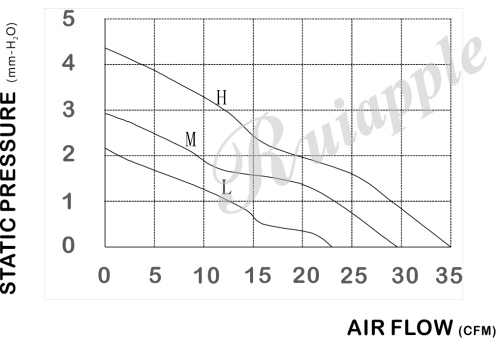

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
12L | 12 | 0.08 | 0.9 | 2200 | 21 | 39 | 23 | 24 |
12M | 12 | 0.12 | 1.4 | 2600 | 29 | 50 | 30 | 30 |
12H | 12 | 0.18 | 2.2 | 3200 | 43 | 59 | 35 | 37 |
24L | 24 | 0.06 | 1.4 | 2200 | 21 | 39 | 23 | 24 |
24M | 24 | 0.08 | 1.9 | 2600 | 29 | 50 | 30 | 30 |
24H | 24 | 0.10 | 2.4 | 3200 | 43 | 59 | 35 | 37 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 80000 hours |
