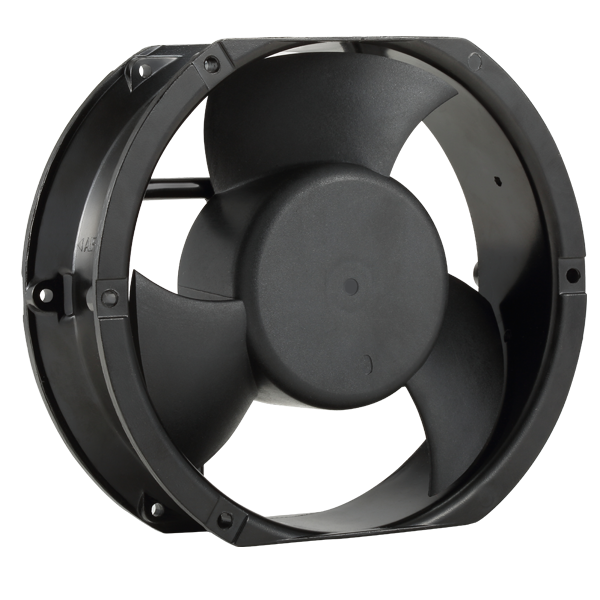

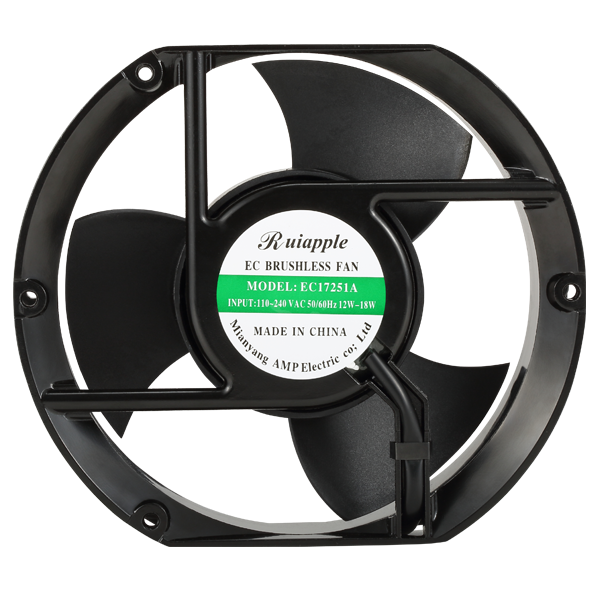

RA-EC17251A
Product description:
This RA-EC17251A fan design delivers the combined benefits of AC and DC Fans. Its has same size like series Dc fan. The EC fan's power comes from a brushless DC motor, but it offers the control that AC induction fans have over the fan rotor through a printed circuit board. The Ec fan are Widely-used in any place which can not provide DC, or same size AC products doesnt has enough performance. The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL TUV and VDE. Every model undergoes rigorous testing to achieve minimum noise under high airflow and air pressure conditions. All models are meet strict reliability requirements.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-EC17251A

Product Types

Axial Fan

Product Types

EC Motor


Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h)

Air Flow(CFM)

Noise  (dB)

220H

220

0.17

21

3600

186

441.74

260

60
Customized


Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

10MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

80000 hours
