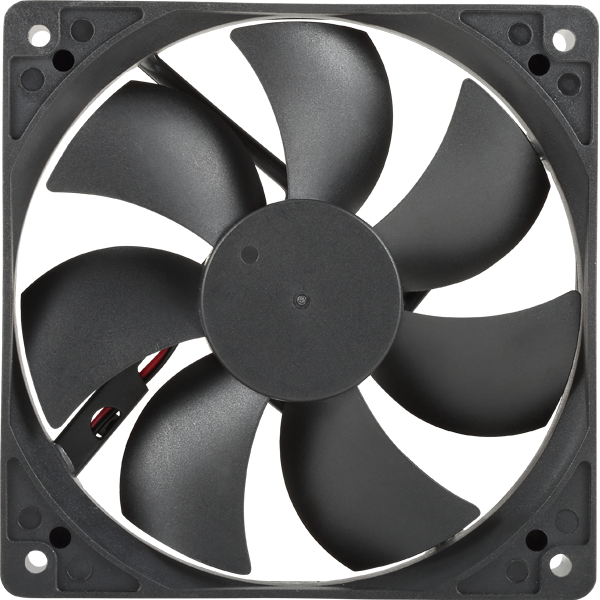

RA-DC12025
Product description:
DC motor powered axial fan series covers a diameter range of models from 20mm to 200mm. with maximum air volume up to 700 m3/h and maximum static pressure up to 500 Pa. This series of axial fans has EC and AC available. Input power sources for DC series are 12VDC 24VDC 48VDC and 310VDC and for AC series are 115VAC 230VAC and 380VAC; DC motors make excellent performance of this product Low noise Low vibration Energy saving Enviromental performance quietness. The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL TUV and VDE. Every model undergoes rigorous testing to achieve minimum noise under high airflow and air pressure conditions. All models are meet strict reliability requirements.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-DC12025

Product Types

Axial Fan

Product Types

Brushless DC Motor

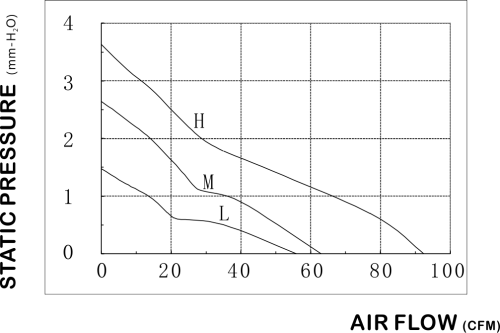

Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h)

Air Flow(CFM)

Noise  (dB)

12L

12

0.07

0.8

1500

14

95

56

27

12M

12

0.13

1.56

2000

26

107

63

35

12H

12

0.3

3.6

2500

36

156

92

41

24L

24

0.06

1.4

1500

14

95

56

27

24M

24

0.1

2.4

2000

26

107

63

35

24H

24

0.16

3.8

2500

36

156

92

41

Customized









Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

10MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

80000 hours
