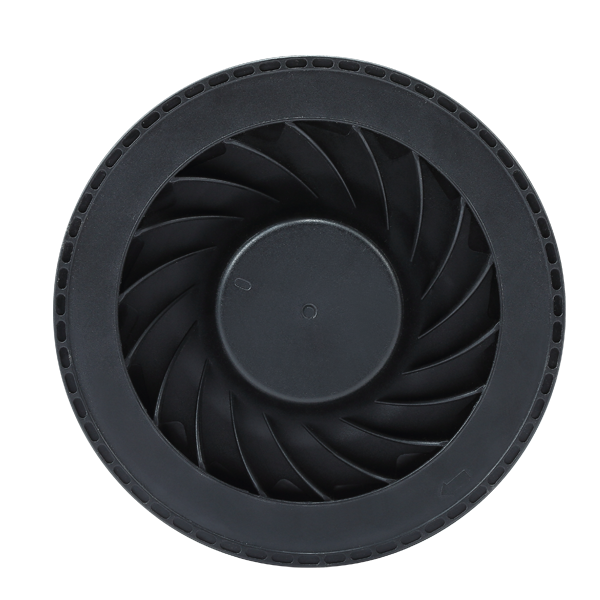

RA-DCC10025
Product description:
This is automotive grade product and already using in Auto industry. The most powerful, slient small DC fans with backward-curved blades and covers a diameter range of models from φ100mm to φ120mm, height 25mm. With maximum air volume up to 113 m3/h and maximum static pressure up to 196 Pa with low noise, no extra electromagnetic noise. High air flow and pressure excellent for air purifier, car air conditioner and any application need quiet. DC motors come with a variety of control solutions and protection functions.It is easier to control the fan and flexibly meet customers’ control requirements such as Pwm, Vlotage.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-DCC10025

Product Types

Centrifugal Fan

Product Types

Brushless DC Motor


Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h)

Air Flow(CFM)

Noise  (dB)

12L

12

0.12

1.44

2000

55

52.33

30.8

32

12M

12

0.17

2.04

3000

82

65.41

38.5

43

12H

12

0.60

7.20

4000

163

91.58

53.9

50

24L

24

0.07

1.68

2000

55

52.33

30.8

32

24M

24

0.10

2.40

3000

82

65.41

38.5

43

24H

24

0.30

7.20

4000

163

91.58

53.9

50

Customized









Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

110MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

8000 hours
